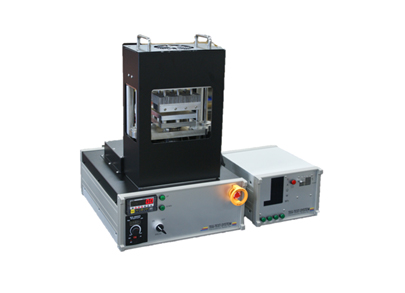

TEG Module Durability Test Equipment

Equipment for testing the lifetime of thermoelectric elements by cyclic testing at high and low temperatures of the TEG module

The purpose of this system is to respond smoothly at 350℃ and when connected to a Putrotech power generating device, under the thermoelectric elements that will be distributed on the market in the future, as well as to electric shocks and thermal expansion caused by heating and Contraction caused by temperature change Defects Problems arise from physical action. Through this device, the long-term durability of the thermoelectric element is measured in advance to check the product level and This is a durability meter against the power generation environment of thermoelectric elements to ensure unit price competitiveness by measuring the durability of commercially available thermoelectric elements.

Primary Purpose
  • Determining the durability of the thermoelectric element by continuous (100℃ ◀▶ 350℃) cycle test
  • Checking the durability of the thermoelectric element according to the customer's conditions by changing the temperature of the low-temperature part
  • Using the above data, determine the lifespan of the thermoelectric element and determine the product warranty period
  • Determining the lifetime of the thermoelectric device after initial resistance measurement and cycle testing
  • Comparison of Other Thermoelectric Devices (Lot 227℃ CuSn) Products to Ensure Unit Price Competitiveness)
Properties.
  • Durability test of various thermoelectric elements (both for 40 x 40 mm and for 55 x 55 mm)
  • Fast temperature performance. (Durability measurement when the temperature of the high-temperature part changes))
  • main specification table
Details REMARKS
power consumption 1.0 Kwh
temperature control range 20℃ ◀▶ 350℃
temperature precision 300℃ ± 0.1 ℃ 이내
Dimension 420 x 140 x 500 ( mm )
weight 10 kg
temperature implementation High-temperature part heating method heater
Low temperature part cooling method chiller
display high temperature part temperature
cold part temperature
number of cycles
safety device Auto circuit breaker, bimetal
